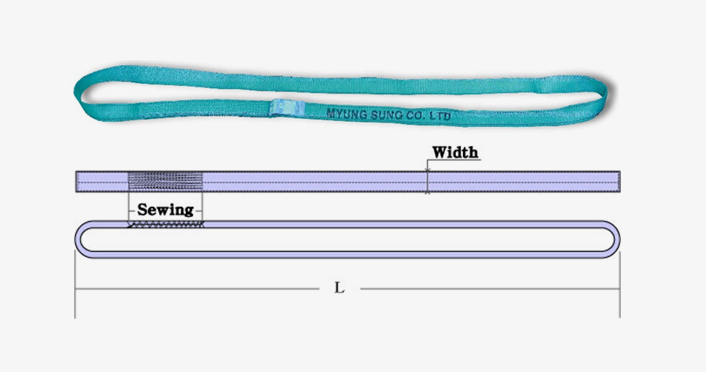

1ply, 2ply, 4ply(SF 6:1, SF 7:1)
Scan the QR Code on the label
| Hitches | Vertical Hitch | Choker Hitch | ||||
|---|---|---|---|---|---|---|
 |
 |
 |
||||
 |
 |
 |
||||
| Hitches | - | - | a = 0º | a ≤ 45º | 45º ＜ a ≤ 90º | 90º ＜ a ≤ 120º |
| Mode factor M | 1 | 0.8 | 1.6 | 1.4 | 1.1 | 0.8 |
Edges in contact with the sling must be “ padded” with materials of sufficient strength
and thickness to prevent damage and catastrophic sling failure.
| WIDTH | TYPE | WORK LOAD LIMITS(Kg) | ||||
|---|---|---|---|---|---|---|
| Vertical | Choker | Basket Hitches | ||||
 |
 |
 |
 |
 |
||
| 25mm | EN1-701 | 800 | 640 | 1,600 | 1,360 | 1,120 |
| 25mm | EN1-601 | 1,000 | 800 | 2,000 | 1,700 | 1,400 |
| 25mm | EN2-701 | 1,600 | 1,280 | 3,200 | 2,720 | 2,240 |
| 25mm | EN2-601 | 2,000 | 1,600 | 4,000 | 3,400 | 2,800 |
| 25mm | EN4-701 | 3,200 | 2,560 | 6,400 | 5,440 | 4,480 |
| 25mm | EN4-601 | 4,000 | 3,200 | 8,000 | 6,800 | 5,600 |
| 50mm | EN1-702 | 1,600 | 1,280 | 3,200 | 2,720 | 2,240 |
| 50mm | EN1-602 | 2,000 | 1,600 | 4,000 | 3,400 | 2,800 |
| 50mm | EN2-702 | 3,200 | 2,560 | 6,400 | 5,440 | 4,480 |
| 50mm | EN2-602 | 4,000 | 3,200 | 8,000 | 6,800 | 5,600 |
| 50mm | EN4-702 | 6,400 | 5,120 | 12,800 | 10,880 | 8,960 |
| 50mm | EN4-602 | 8,000 | 6,400 | 16,000 | 13,600 | 11,200 |
| 75mm | EN1-703 | 2,400 | 1,920 | 4,800 | 4,080 | 3,360 |
| 75mm | EN1-603 | 3,000 | 2,400 | 6,000 | 5,100 | 4,200 |
| 75mm | EN2-703 | 4,800 | 3,840 | 9,600 | 8,160 | 6,720 |
| 75mm | EN2-603 | 6,000 | 4,800 | 12,000 | 10,200 | 8,400 |
| 75mm | EN4-703 | 9,600 | 7,680 | 19,200 | 16,320 | 13,440 |
| 75mm | EN4-603 | 12,000 | 9,600 | 24,000 | 20,400 | 16,800 |
| 100mm | EN1-704 | 3,200 | 2,560 | 6,400 | 5,440 | 4,480 |
| 100mm | EN1-604 | 4,000 | 3,200 | 8,000 | 6,800 | 5,600 |
| 100mm | EN2-704 | 6,400 | 5,120 | 12,800 | 10,880 | 8,960 |
| 100mm | EN2-604 | 8,000 | 6,400 | 16,000 | 13,600 | 11,200 |
| 100mm | EN4-704 | 12,800 | 10,240 | 25,600 | 21,760 | 17,920 |
| 100mm | EN4-604 | 16,000 | 12,800 | 32,000 | 27,200 | 22,400 |
| 125mm | EN1-705 | 4,000 | 3,200 | 8,000 | 6,800 | 5,600 |
| 125mm | EN1-605 | 5,000 | 4,000 | 10,000 | 8,500 | 7,000 |
| 125mm | EN2-705 | 8,000 | 6,400 | 16,000 | 13,600 | 11,200 |
| 125mm | EN2-605 | 10,000 | 8,000 | 20,000 | 17,000 | 14,000 |
| 125mm | EN4-705 | 16,000 | 12,800 | 32,000 | 27,200 | 22,400 |
| 125mm | EN4-605 | 20,000 | 16,000 | 40,000 | 34,000 | 28,000 |
| 150mm | EN1-706 | 4,800 | 3,840 | 9,600 | 8,160 | 6,720 |
| 150mm | EN1-606 | 6,000 | 4,800 | 12,000 | 10,200 | 8,400 |
| 150mm | EN2-706 | 9,600 | 7,680 | 19,200 | 16,320 | 13,440 |
| 150mm | EN2-606 | 12,000 | 9,600 | 24,000 | 20,400 | 16,800 |
| 150mm | EN4-706 | 19,200 | 15,360 | 38,400 | 32,640 | 26,880 |
| 150mm | EN4-606 | 24,000 | 19,200 | 48,000 | 40,800 | 33,600 |
| 200mm | EN1-708 | 6,400 | 5,120 | 12,800 | 10,880 | 8,960 |
| 200mm | EN1-608 | 8,000 | 6,400 | 16,000 | 13,600 | 11,200 |
| 200mm | EN2-708 | 12,800 | 10,240 | 25,600 | 21,760 | 17,920 |
| 200mm | EN2-608 | 16,000 | 12,800 | 32,000 | 27,200 | 22,400 |
| 200mm | EN4-708 | 25,600 | 20,480 | 51,200 | 43,520 | 35,840 |
| 200mm | EN4-608 | 32,000 | 25,600 | 64,000 | 54,400 | 44,800 |
| 250mm | EN1-710 | 8,000 | 6,400 | 16,000 | 13,600 | 11,200 |
| 250mm | EN1-610 | 10,000 | 8,000 | 20,000 | 17,000 | 14,000 |
| 250mm | EN2-710 | 16,000 | 12,800 | 32,000 | 27,200 | 22,400 |
| 250mm | EN2-610 | 20,000 | 16,000 | 40,000 | 34,000 | 28,000 |
| 250mm | EN4-710 | 32,000 | 25,600 | 64,000 | 54,400 | 44,800 |
| 250mm | EN4-610 | 40,000 | 32,000 | 80,000 | 68,000 | 56,000 |
| 300mm | EN1-712 | 9,600 | 7,680 | 19,200 | 16,320 | 13,440 |
| 300mm | EN1-612 | 12,000 | 9,600 | 24,000 | 20,400 | 16,800 |
| 300mm | EN2-712 | 19,200 | 15,360 | 38,400 | 32,640 | 26,880 |
| 300mm | EN2-612 | 24,000 | 19,200 | 48,000 | 40,800 | 33,600 |
| 300mm | EN4-712 | 38,400 | 30,720 | 76,800 | 65,280 | 53,760 |
| 300mm | EN4-612 | 48,000 | 38,400 | 96,000 | 81,600 | 67,200 |
We have facilities of Warping machine(German) and shuttle loom(Italy).
